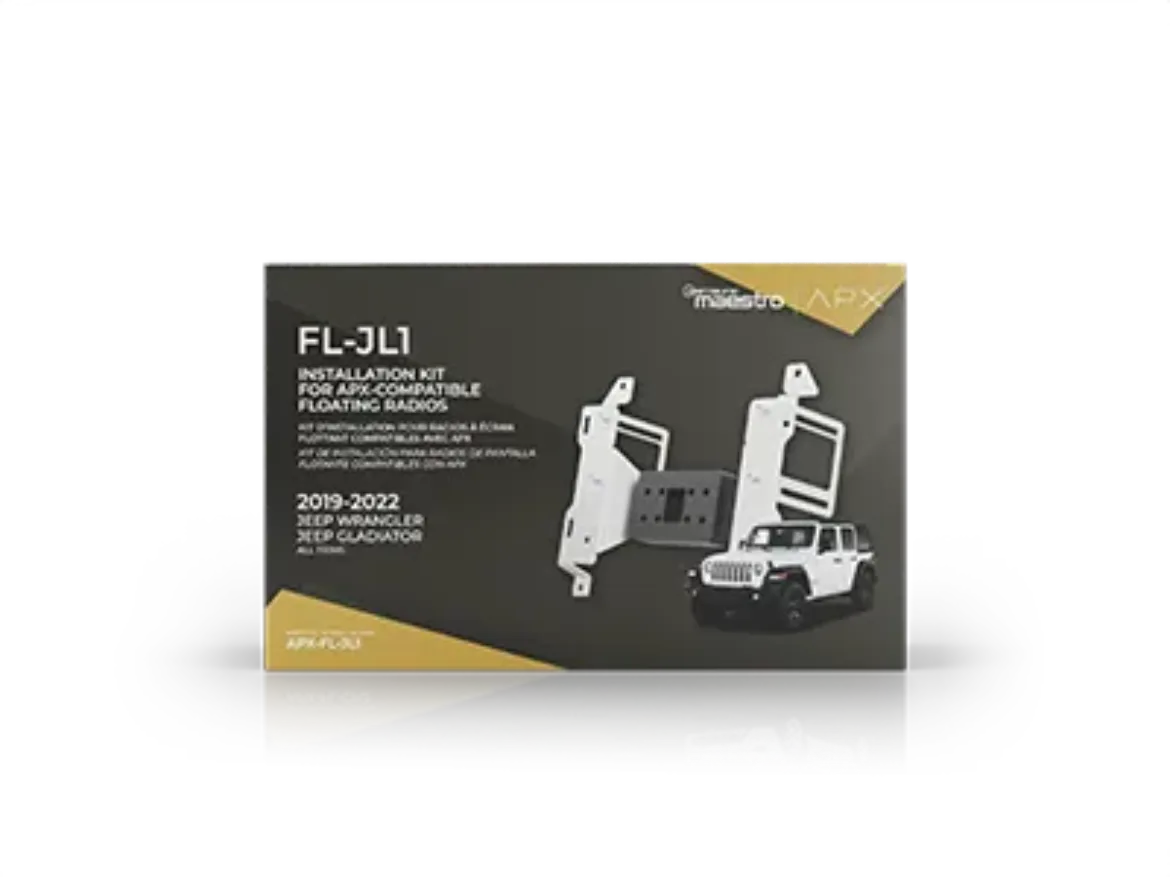

MAESTRO APX FLOATING RADIO INSTALLATION KIT FOR JEEP WRANGLER/GLADIATOR.

• Compatible with 2018-2023 Jeep Wrangler (JL) and 2020-2023 Jeep Gladiator (JT)
• Custom-designed for 10.1" APX-compatible floating touchscreen displays (Kenwood Excelon DAX1050XR / JVC KW-Z1000AW)
• Maintains factory-grade fit and finish with dash-matched color and texture
• Retains factory features: Steering wheel audio controls, secondary vehicle display, and rear seat entertainment (if equipped)
• Retains advanced factory camera features: Backup camera with dynamic parking guidelines and park assist chimes
• Retains factory climate display and control directly through the new touchscreen
• Retains factory amplifier: Supports turn-on, fader, gain, DSP control, and speed-compensated volume
• Adds vehicle data integration: Performance gauges, tire pressure display (TPMS), battery voltage, and door status
• Enables reading and resetting of check engine codes (OBDII integration)
• Provides essential installation outputs: 12V/15A accessory power, illumination, parking brake, reverse, and VSS
• Includes vehicle-specific mounting brackets, USB/media module, antenna adapter, and wiring harnesses
• Requires iDatalink Maestro ADS-MRR or ADS-MRR2 interface module and ACC-HU-KEN1 harness (sold separately)

Vehicle Coverage:

• Jeep: Wrangler JL (2018-2023), Gladiator JT (2020-2023)
